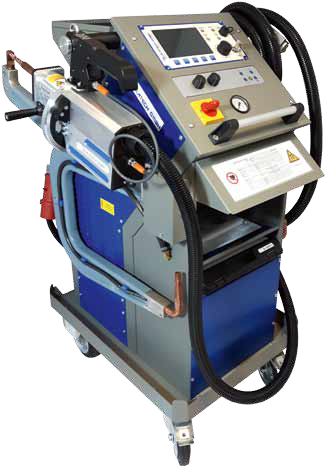

Solidus PREMIUMspot Vision Multi Function Spot Welder

Solidus PREMIUMspot Vision Multi Function Spot Welder

The Solidus PREMIUMspot Vision Multifunction spot welding machine is in the
premium class of spot welders with a complete software package for worry-free automotive repair! Fully automatic welding particularly of components made of high or maximum strength and also coated and laminated steel panels. Aluminum welding for thin aluminum sheets up to 3 mm. All required welding tasks performed by a single device.
• Spot welding in automatic mode without prior adjustments
• Conventional spot welding in standard mode with setting of current and time
• Spot-welding with quality assurance and energy control:
  Welding programs for coated panels and panels still containing
  traces of paint or adhesive residues, including independent parallel
  resistance detection system and stabilizing control as well as
  vehicle-specific programs with approved parameters of vehicle
  manufacturers
• Spotting, dent repair, pulling of steel plates, welding-on of pins and
  T-pins (with optional spotter)

PREMIUMspot VISION CHARACTERISTICS

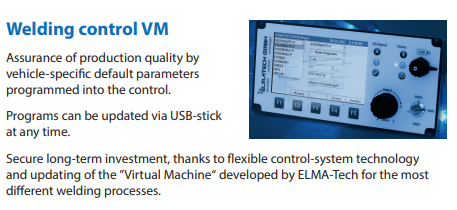

• Welding process-control software Virtual Machine (VM)
• High welding currents even with low fuse protection
• High output currents >13 kA
• High quality performance “spot by spot“
• Energy control
• Parallel resistance detection
• Reproducible welding quality
• Welding parameters can be updated via USB-Stick at any time
• Welding data documentation with the use of Spot QS Viewer (optional)
• Complete software package
• Equates to the exposure limit values of the EU-Directive 2004/40/EG

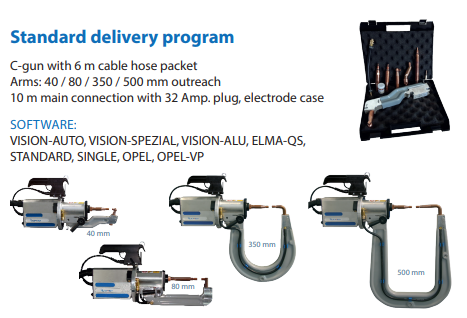

• Easy and quick exchanging of C- and X-gun

***Sold only in Florida! Please contact us for more information.
