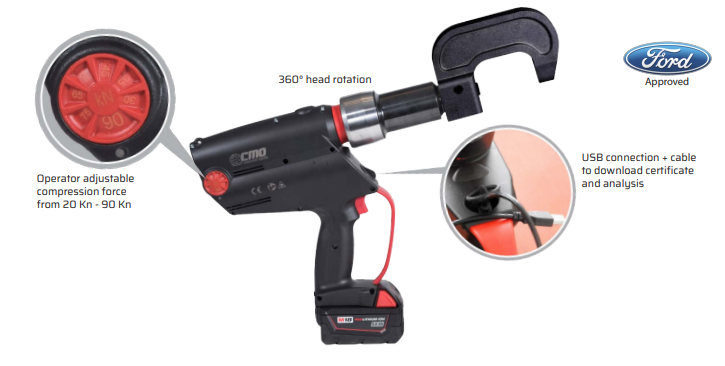

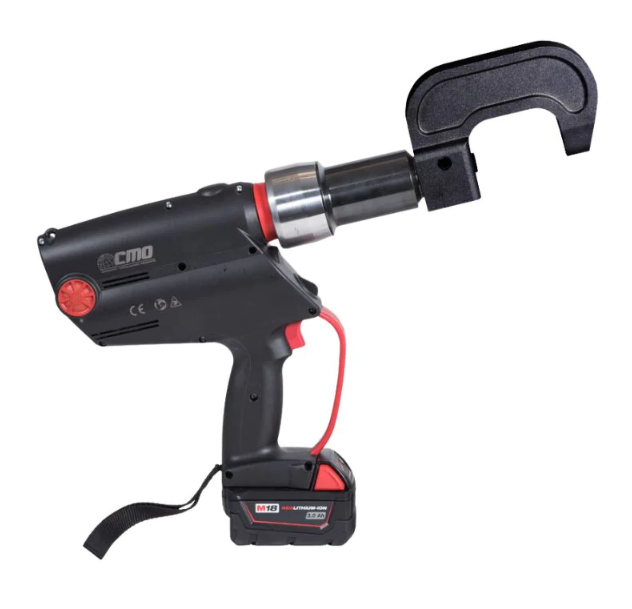

The Solidus CMO handheld Self-Piercing Riveter packs a punch with its 8-ton pushing and pulling capacity. Despite its compact size, the RV/EV02 is a durable and powerful riveting device. Approved by Ford and also suited for specific rivet mandrils of many other car brands, such as Audi, Mercedes, BMW, Ferrari, and Porsche. Its pulling and pushing actuator controls a powerful electrohydraulic pump, which guarantees strong and silent operation. The RV/EV02 is also capable of removing rivets with standard dies. Pressing time can be regulated, and when a set force is obtained, the device can retract automatically.
Specifications:
Approved by Ford
Strong, lightweight construction
Compression arms sizes: 40, 110, or 220 mm
Built-in software to track riveting
Compression force = 20-90 Kn
Compression time 3 - 5 sec.
Push Pull capacity = 8000 kg
Low noise level < 70 dB
Regulation psi = 2900 - 1015
Weight = 5 kg
The RV/EV02 is equipped with an 18V Li-ion Battery and recharger: • Charge time < 1-hour • Usage = 380 rivets
